Cargo RO-RO/, DWT 5,630, 1394.2 LM, Trucks, 1990, TC, Ref C3519
GT I NT
Hold dimensions
Antigua & Barbuda / German Management
1990, January, J.J. Sietas KG, Hamburg-Neuenfelde / Germany V2JA4
GL +100 A5 with Swedish / Finish ice class E3, 'with freeboard 0.155 m' 'Ro/Ro-Ship' 'G', 'Equipped for carriage of containers' +MC E3 aut
8818764
Multi Purpose Ro/Ro cargo vessel, double skinned throughout in reach of cargo hold, equipped with special features for carriage of paper
abt 4.415 mtons on abt 6,07 m sfb abt 4.200 mtons on sfb
length over all 107,45 m length b.p.p. 98,00 m
beam 17,00 m
airdraft 30,00 m
moulded depth 9,90 m 5.562 / 1.845
doubleskinned / boxshaped
lower hold 60,20 x 14,50 m (narrowing fore and aft) x 4,19 m ( I x w x h )
Ro-Ro-deck 92,00 x 14,50 m (narrowing fore and aft) x 5,50 m ( I x w x h :
Hold capacities
Hatches
lower hold 3.078,6 m3 or 108.736 cbft bale Ro-Ro-d eck 6.844.9 m3 or 241.760 cbft bale total 9.923,5 m3 or 350.496 cbft bale
weatherdeck: hydraulically operated folding MacGregor Navire type, no.1 - 25,20 x 14,50 m, narrowing to abt. 10,28m
no.2 - 12,60 x 10,10 m
no.3 - 25,20 x 14,50 m
hatch in Ro-Ro deck to lower hold:
one pontoon hatch cover about 8,00 x 3,00m, to be opened by shore cran permissible weights/strength as for Ro/Ro deck
TEU
Ro-Ro-deck 1st tier 2nd tier
57 TEU
57 TEU
or 22 FEU
or 22 FEU
plus 13 TEU
plus 13 TEU
Total
114 TEU
or 44 FEU
plus 26 TEU
weather-deck 1st tier
2nd tier 3rd tier
60 TEU
60 TEU
60 TEU
or 28 FEU
or 28 FEU
or 28 FEU
plus 4 TEU
plus 4 TEU
plus 4 TEU
Total
180 TEU
or 84 FEU
plus 12 TEU
Total container capacity
294 TEU
or 128 FEU
plus 38 TEU
homogeneous container intake - stability:
152 / 146 / 134 / 126 / 120 TEU of 10 / 12 / 15 / 18 / 20 tons unit weight
stackweights: TEU FEU weather deck hatches (3 tiers): 40 mtons 50 mtons
Ro-Ro-deck (2 tiers): 40 mtons 50 mtons
abt 1.415 EURO pallets basis one high, which can be increased by two hi 16 (sixteen) reefer plugs (eight under and eight on deck)

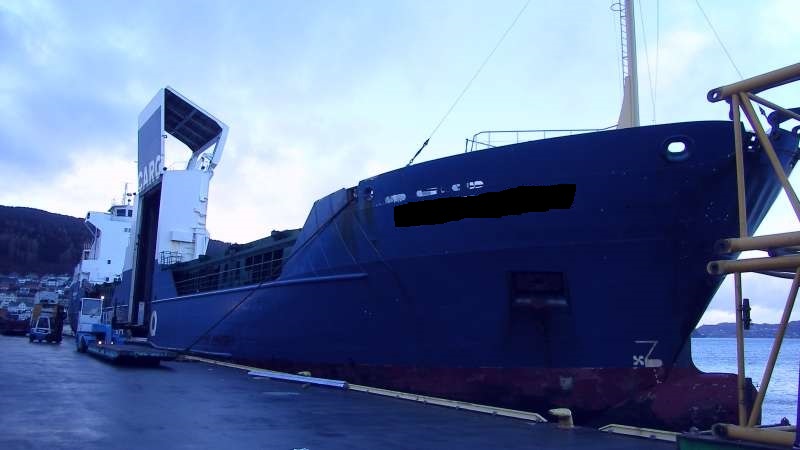

Cargo handling equipment side door on starboard side, with clear opening of abt 8,80m x 13,00m (wx
2 side shifter platforms, both serving Ro-Ro-Deck and lower hold dimensions each abt 3,20 m x 1,60 m
capacity each abt. 12 tons SWL
Free height above platform, when in highest position abt 2,50 m. Working range of platform lifts is from tank top to abt. 15,60 m above it. Lowest position for turning platform out over quay abt. 7,80 m above vessels base line, i.e. when vessels draft is 4,00 m and the quay is 2,00 m above water line, the platform would be 1,80 m above quay. Outreach of platforms frorr ship's side selectable from 2,70 m and 2,00 m and 1,20 m

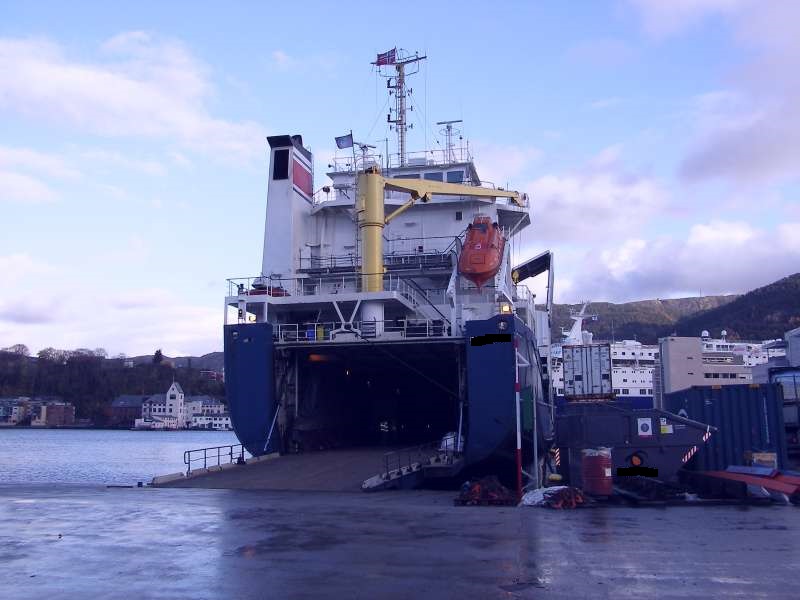

stern ramp clear opening abt 9,25 m width and 5,80 m height ramp length abt- 12,00 m
ramp width abt. 9,25 m, narrowing to abt. 8,00 m aft max angle downwards - 10 degrees
max angle upwards + 12 degrees
Permissible Ro-Ro weights Road Trailer - max 67 mtons / about 296 Lane Meters
MAFI Trailer 40ft - max 75 mtons, MAFI Trailer 20ft - max 35,65 mtons
Deck Strenghts
Main engine
Speed / Consumption
Capacities
Crew
Phone/ Fax
Telex
Tanktop 8 mtons/m2, Ro-Ro-Deck 4 mtons/m 2, Hatches 1,73 mtons/m2
MAK type 9M 453 C with 2.960 kW/600 rpm, shaft generator 675 KVA 3 MAN auxiliary diesel engines, variable pitch propeller
abt 13,0 knots on abt. 14 tons IFO 180 at sea with shaft generator connected. Vessel may use GO when manoeuvring in port. Port consumption abt 0,8 tons GO when idle/ abt. 2,8 tons GO when working
Bunker delivery has to be accordance with Marpol 6
abt 361 mtons fuel oil, abt 57 mtons GO, abt 1.875 mtons ballast water, abt 42 mtons fresh water
German master I International Crew available upon request
via lnmarsat C # 430402125
Special features bowthruster 400 kW /540 hp, CO2 fitted, air drying plant, electrical ventilati
20/10 air changes per hour basis open / closed stern ramp, 4 power sockE outlets in holds for trucks, fitted with 4 forklifts (bio diesel) each equipped
with
paper-clamps (2 x max 4,5 tons, resp. 2 x max 6,0 tons), fresh water evaporator
- All details about and wog -
Inspection can be arranged
Ref C3519
Charter Rate contact us
