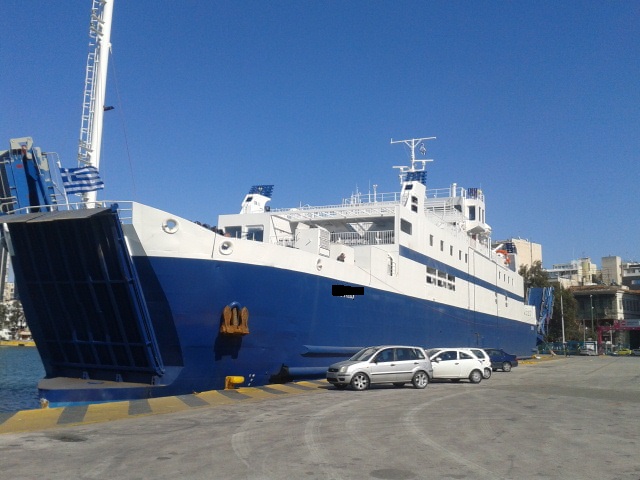

PASSENGER 604, RORO FERRY, 169 CARS, REBUILT 2014, Ref C3681

CONSTRUCTION
PLACE OF BUILT: SUNDERLAND, UK

YEAR OF BUILT: 1989
RENOVATION: ITALY, 2004 & 2007
GREECE, 2014
TYPE: RO-RO PASSENGER DOUBLE ENDED
FLAG: GREEK
CLASSIFICATION: RINA
CLASS: C + RO-RO PASSENGER, COASTAL AREA
NAVIGATION: CAT C
DIMENSIONS
LENGTH OVERALL: 93,80 m
REGISTERED BREADTH: 15,00 m
REGISTERED DRAFT: 3,10 m
MAX DRAFT: 3,60 m
TONNAGE
GROSS TON: 4061
DISPLACEMENT AT MAX DRAFT: 3047 t
LIGHTSHIP: 2051 t
DEADWEIGHT: 996 t
FREEBOARD: 1309 mm

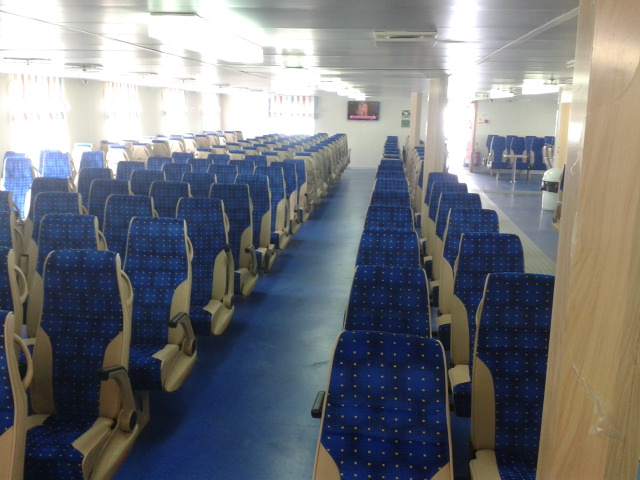

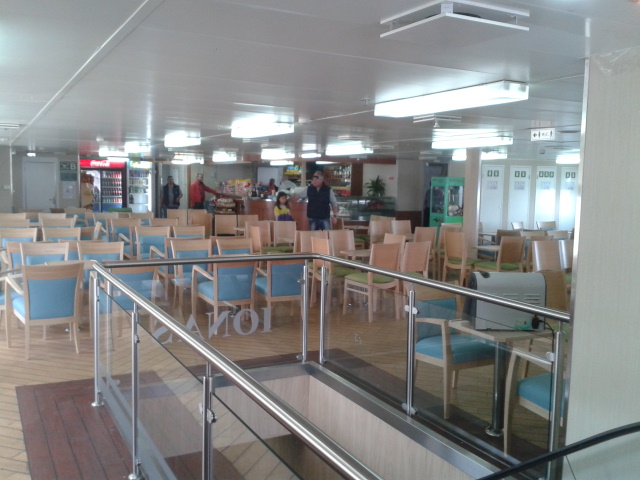

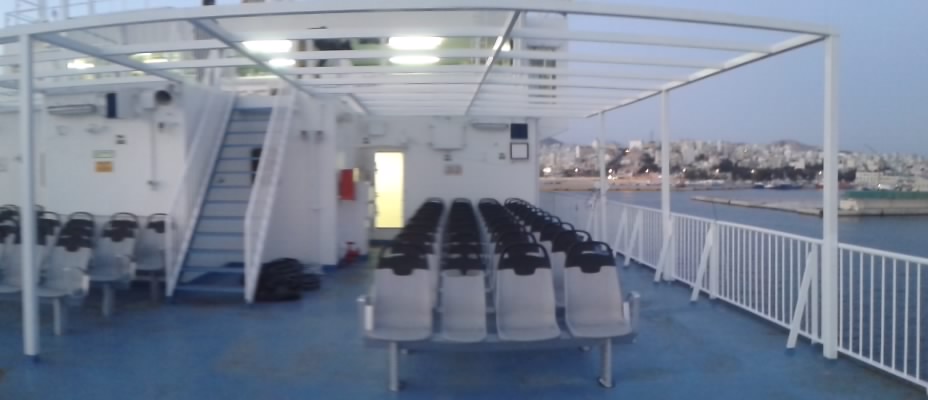

PASSENGERS:
TOTAL CAPACITY 604 PASSENGERS
(WINTER: 426 – SUMMER: 604)
ALL PASSENGER AREAS WITH A/C
16 WC
CREW
CREW CABINS: 1 X CAPTAIN
1 X CHIEF ENGINEER
2 X 1 OFFICERS
3 X 4-BEDS CREW
1 KITCHEN GALLEY
1 CREW MESS
ALL CREW CABINS WITH PRIVATE WC
CAR/TRAILER DECKS

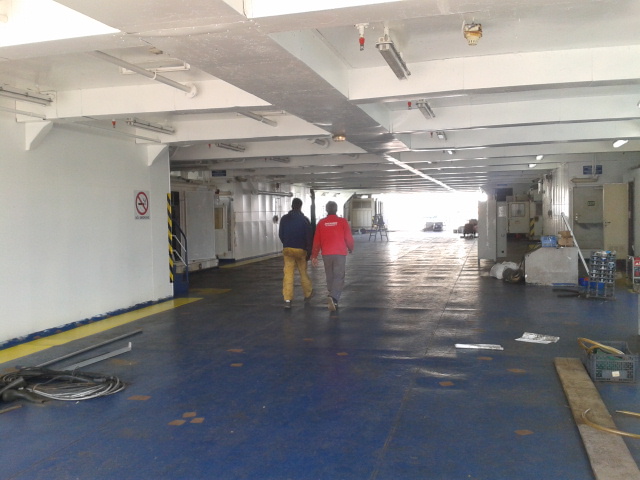

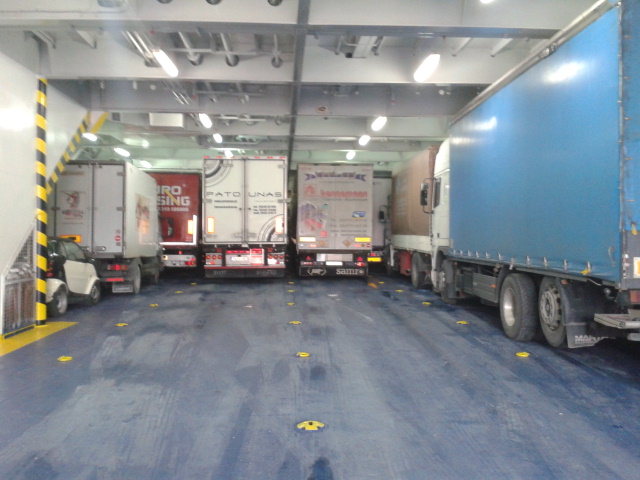

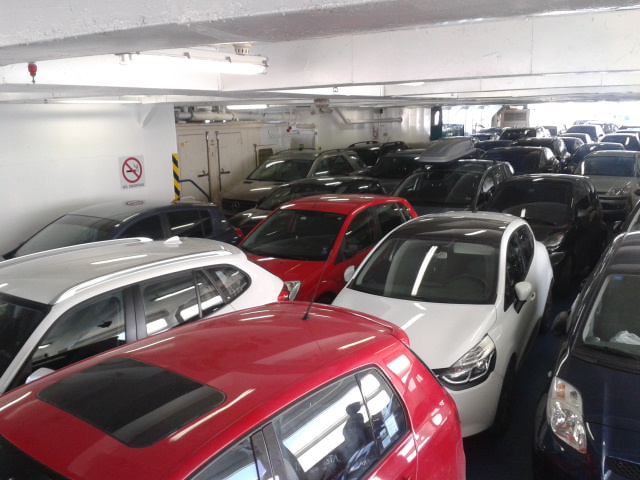

MAIN GARAGE
CLEAR HEIGHT: 4,25m
AXLE LOAD: 8 t (10t with double wheels)
CAPACITY: 104 CARS or equivalent TRUCKS (260 L.M)
UPPER GARAGE
CLEAR HEIGHT: 2,50m
AXLE LOAD: 1 t
CAPACITY: 65 CARS
TOTAL CAPACITY: 169 CARS OR 260 L.M. TRUCKS + 65 CARS
ACCESS
EXTERNAL ACCESS MAIN GARAGE
BOW RAMP DOOR, l x w: 7,53 m (with flaps 8,0 m) x 6,38 m
STERN RAMP DOOR, l x w: 7,53 m (with flaps 8,0 m) x 6,38 m
EXTERNAL ACCESS UPPER GARAGE
BOW RAMP TO UPPER DECK, l x w: 17,6 m x 3,0 m
STERN RAMP TO UPPER DECK, l x w: 17,6 m x 3,0 m
MACHINERY

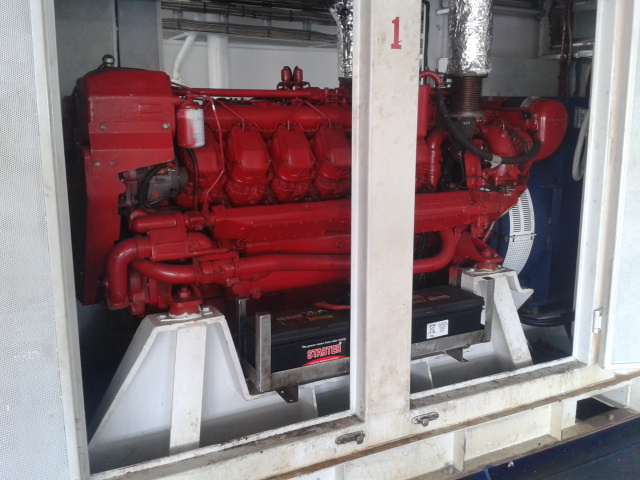

GENSETS: FOUR (4)
MAKE: IVECO
TYPE: AIFO 8291
kW: 578
YEAR: 2004
GENSETS: TWO (2)
MAKE: CUMMINS
TYPE: KT19
kW: 470
YEAR: 2013
GENSETS: ONE (1)
MAKE: CUMMINS
TYPE: C100 D6
kW: 90
YEAR: 2013
PROPULSION
ELECTRIC MOTORS: FOUR (4)
kW: 550
RUDDER PROPELLERS: FOUR (4)
MAKE: SCHOTTEL
TYPE: SRP 350/350
TANKS
FUEL: 245 t
SPEED/CONSUPTION
TRIAL SPEED (90%): 13,5 knots
SERVICE SPEED: 12,5 knots
FUEL CONSUPTION: 400 lit/hour
FUEL QUALITY: MARINE GASOIL
SHORT DESCRIPTION:

The vessel was extensively modified in 2004 in Italy, when all engines were replaced with new, a
new power management system was fitted by ABB and vessel was upgraded to meet the

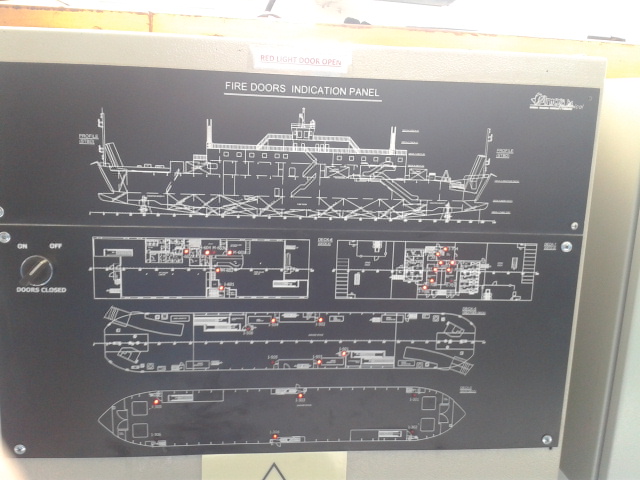

latest EUROSOLAS criteria (sprinkler, drencher, smoke detectors, fire control system, door
open/close indicators, A60 doors, etc). After these major modifications, RINA has issued an
“Age reduction certificate” for 10 years. In 2006 vessel’s bows were modified and 4 new ramps
were fitted on both decks by MacGregor. In 2014, IONAS was fully renovated where all
engines were overhauled, 2 Cummins engines were replaced with new, 1 port generator was

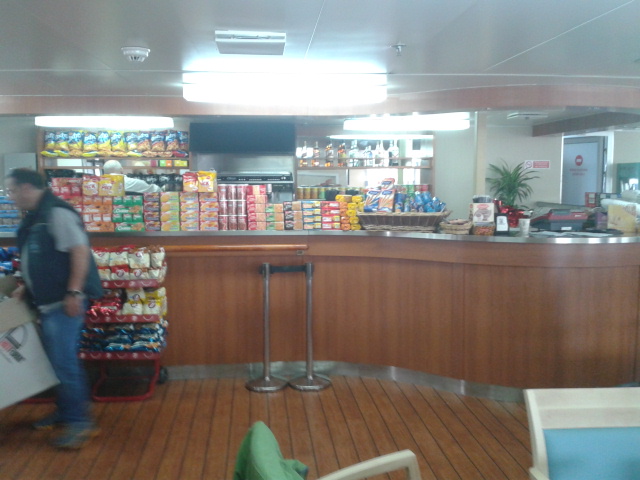

added, 4 escalators were fitted, all new LSA was installed and all accommodation, including
WC’s and cabins, were renovated.

Inspection can be arranged

Ref C3681

Charter 1 year Euro negotiable
